Westinghouse · Ceiling fan · Large airflow
Westinghouse Jax 7861400 56-inch Ceiling Fan
- 4,833 CFMon high
- 56-inchsweep
- 5speeds
Amazon shows the current price, delivery and seller. As an Amazon Associate we earn from qualifying purchases.
Specs cited from Manufacturer source ↗ · Manufacturer source ↗Photos: Amazon listing ↗ · refreshed Oct 28, 2026

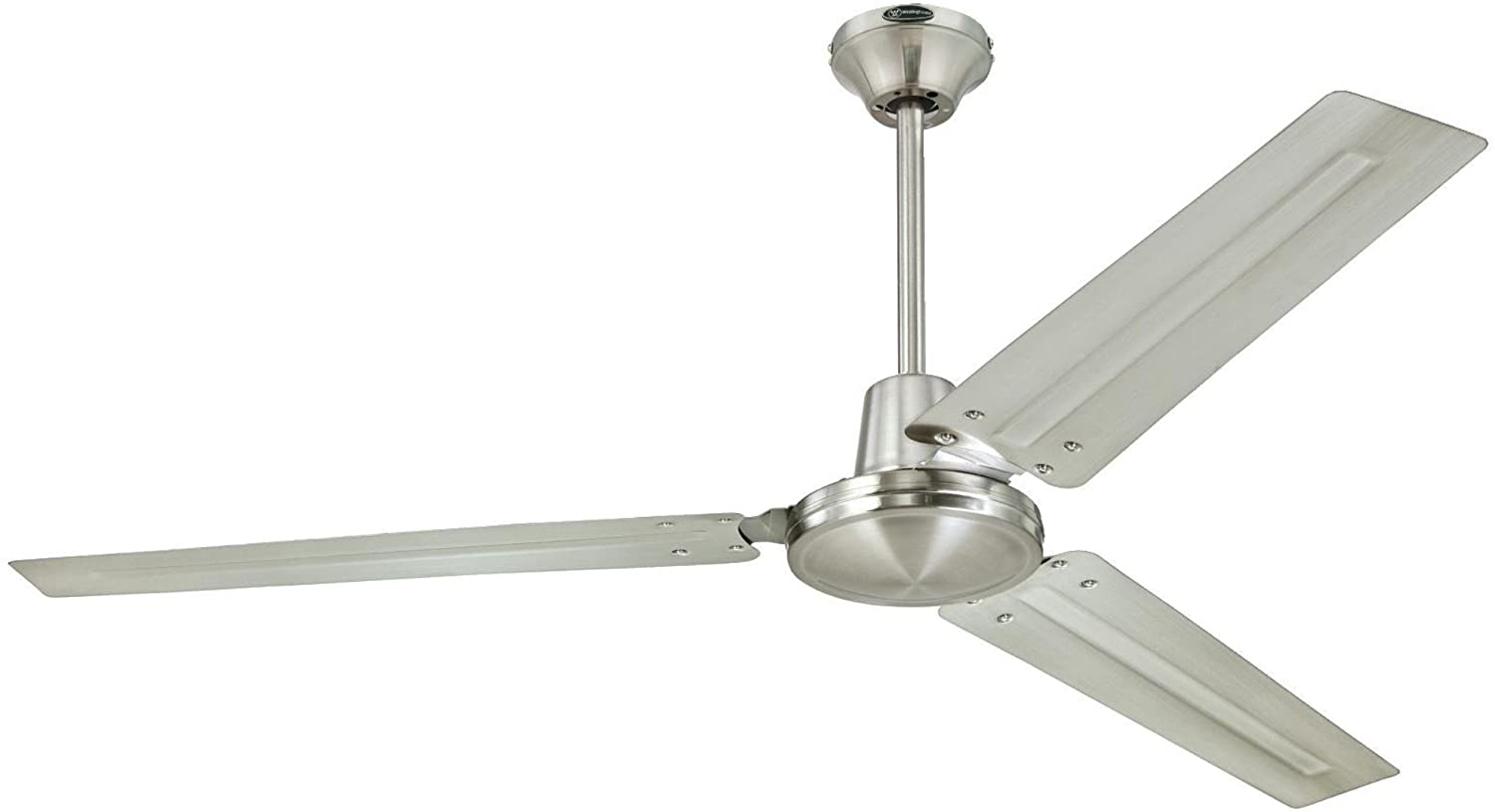

The Westinghouse Jax 7861400 is a 56-inch, three-blade indoor ceiling fan with a full manufacturer spec line: 4,833 CFM, 196 RPM and just 56 W on high, run from an included five-speed wall control.
What works
- 4,833 CFM on high from a 56-inch sweep
- 5 speed settings
- Westinghouse publishes 4,833 CFM, 196 RPM, 56 W and 0.50 A at high speed
- Five-speed wall control included
- Three brushed-nickel steel blades for an industrial look at room scale
What doesn't
- Indoor only, and downrod only with no flush-mount option
- At 56 inches, it is sized for a room, not a shop floor
- No published sound level or weight
Who it's for
Good fit
- Great rooms, home offices and finished spaces up to the 400 square feet the listing names
- Buyers who prefer a wall control to a handheld remote
- Low running cost, with Westinghouse listing 56 W and 0.50 A on high
Look elsewhere if
- Warehouses and big shops, where the larger fans here move more than twice the air
- Porches, patios or damp spaces; it is an indoor fan
- Low ceilings that need a flush-mount fan; the Jax is downrod only
A good fit for your job? Check the current price and delivery.
See price on AmazonWhy it stands out
Most 56-inch fans stop at "quiet" and "powerful." Westinghouse gives the Jax a real spec line: 4,833 CFM at high speed, 196 RPM, 56 W and 0.50 A. That makes it one of the few room-size ceiling fans you can size and cost out before it arrives. Three brushed-nickel steel blades give it the industrial look without an industrial footprint.
Control is simple: a five-speed wall control, so there is no remote to lose. The listing states a 15-year limited motor warranty and two years on other parts.
What to know before you buy
- Size: the listing pitches it for great rooms up to 400 square feet, and that is the right way to think about it. It is a room fan, not a warehouse fan.
- Mounting: downrod only and indoor only. Hang it from a ceiling box marked for fan support, and keep the 56-inch sweep clear of walls and light fixtures. The weight is not published, so check the carton before choosing hardware.
- Power: 56 W on high keeps running cost low.
- Noise: the listing describes quiet performance, but no sound rating is published.
How it compares
- Big Air ICF72UPS 72-inch: Maxx Air lists up to 10,200 CFM on 35 W with a six-speed remote. That is more than twice the air on less power, if you have room for a 72-inch sweep.
- Fanimation Odyn 84-inch: 10,104 CFM on 32 W, an integrated LED light and a dry/damp rating. The step up for a large great room or covered porch.
- Garage with no good ceiling spot? A wall-mount industrial fan puts air on the work area without a ceiling install.
Browse every size in large industrial ceiling fans.
Bottom line
The Jax is an honest, well-documented room fan. Buy it for an indoor space where 4,833 CFM is enough. For anything bigger, a 72-inch or 84-inch fan moves more air on less power.
Verdict
Buy the Jax 7861400 if you want a documented, low-draw 56-inch fan with a wall control for an indoor room. Skip it for shops, barns or covered patios, where a 72-inch or larger fan does far more work.
Questions people ask
- How much air does the Westinghouse Jax 7861400 move?
- Westinghouse's specification sheet lists 4,833 CFM at high speed, with the blades turning 196 RPM.
- How much electricity does it use?
- 56 W and 0.50 A on high, according to the same specification sheet.
- Does the Jax come with a remote?
- No. It ships with a five-speed wall control.
- Can it be flush-mounted or used outdoors?
- No on both counts. Westinghouse lists it as downrod only, and the listing describes it as an indoor fan.
- What size room is the Jax for?
- The listing positions it for great rooms up to 400 square feet.
Before you buy
Installation and buying checks
Use these questions to verify the exact configuration. Linked facts are cited; unlisted details stay questions.
Mounting and support
What mounting method and hardware does the exact unit require?
Clearance and handling
Do the listed physical details leave enough clearance for installation, adjustment, and service?
- Blade diameter: 56 inManufacturer source ↗
Electrical match
Does the documented electrical information match the planned supply? Confirm the installed unit’s nameplate and installation instructions before connecting it.
- Current: 0.5 AManufacturer source ↗
- Power draw: 56 WManufacturer source ↗
Airflow at the job
Is the listed airflow rated at an operating point that matches the job after placement, obstructions, and system resistance are considered?
- Airflow (high): 4,833 CFMManufacturer source ↗
Location requirements
Does the site require an environmental rating or guard? Neither is listed here.
Put 4,833 CFM in context
The Westinghouse Jax 7861400 56-inch Ceiling Fan has a listed airflow of 4,833 cubic feet per minute. The table compares this rated volume with example room volumes. It does not measure fresh-air exchange, air speed at your body, or room coverage.
| Room | Size | Nominal room volumes / hour | Nominal pass interval |
|---|---|---|---|
| One-car garage | 22 × 12 × 9 ft · 2,376 ft³ | 122× | 29 s |
| Two-car garage | 22 × 20 × 9 ft · 3,960 ft³ | 73× | 49 s |
| Workshop | 40 × 30 × 12 ft · 14,400 ft³ | 20× | 3 min |
| Warehouse bay | 100 × 50 × 16 ft · 80,000 ft³ | 3.6× | 17 min |
A circulation fan does not by itself replace indoor air. Exhaust airflow depends on a makeup-air path and system resistance. Use installed outdoor airflow for ventilation calculations.
Formula: airflow × 60 ÷ room volume. CDC explains the ventilation form of this equation; here the input is a catalog rating, so the result is a volume comparison.
Listing details
What we know about this listing
Listing data was imported on October 28, 2026. Each specification can have a different source-check date; the evidence below is the most precise source information available here.
Sources for 7 listed specifications
- Airflow (high): Westinghouse Jax 7861400 specification sheet · checked Sep 15, 2026 · 7861400 Energy Information and Specifications — “56 in Brushed Nickel Finish; Airflow (CFM) when operated at high speed 4833; RPM (High) 196; Amp (High) 0.50; Watts (High) 56; Down Rod Only.”
- Blade diameter: Westinghouse Jax 7861400 specification sheet · checked Sep 15, 2026 · 7861400 Energy Information and Specifications — “56 in Brushed Nickel Finish; Airflow (CFM) when operated at high speed 4833; RPM (High) 196; Amp (High) 0.50; Watts (High) 56; Down Rod Only.”
- Max speed: Westinghouse Jax 7861400 specification sheet · checked Sep 15, 2026 · 7861400 Energy Information and Specifications — “56 in Brushed Nickel Finish; Airflow (CFM) when operated at high speed 4833; RPM (High) 196; Amp (High) 0.50; Watts (High) 56; Down Rod Only.”
- Power draw: Westinghouse Jax 7861400 specification sheet · checked Sep 15, 2026 · 7861400 Energy Information and Specifications — “56 in Brushed Nickel Finish; Airflow (CFM) when operated at high speed 4833; RPM (High) 196; Amp (High) 0.50; Watts (High) 56; Down Rod Only.”
- Current: Westinghouse Jax 7861400 specification sheet · checked Sep 15, 2026 · 7861400 Energy Information and Specifications — “56 in Brushed Nickel Finish; Airflow (CFM) when operated at high speed 4833; RPM (High) 196; Amp (High) 0.50; Watts (High) 56; Down Rod Only.”
- Finish: Westinghouse Jax 7861400 specification sheet · checked Sep 15, 2026 · 7861400 Energy Information and Specifications — “56 in Brushed Nickel Finish; Airflow (CFM) when operated at high speed 4833; RPM (High) 196; Amp (High) 0.50; Watts (High) 56; Down Rod Only.”
- Speeds: Westinghouse Jax 7861400 product page · checked Sep 15, 2026 · Features and Benefits — “Wall control included; five-speed wall control provides convenient customized comfort.”
Photos illustrate the listed model. Confirm the current variant, included hardware, and finish with the seller before purchase.
