Fanimation · Ceiling fan · Giant airflow

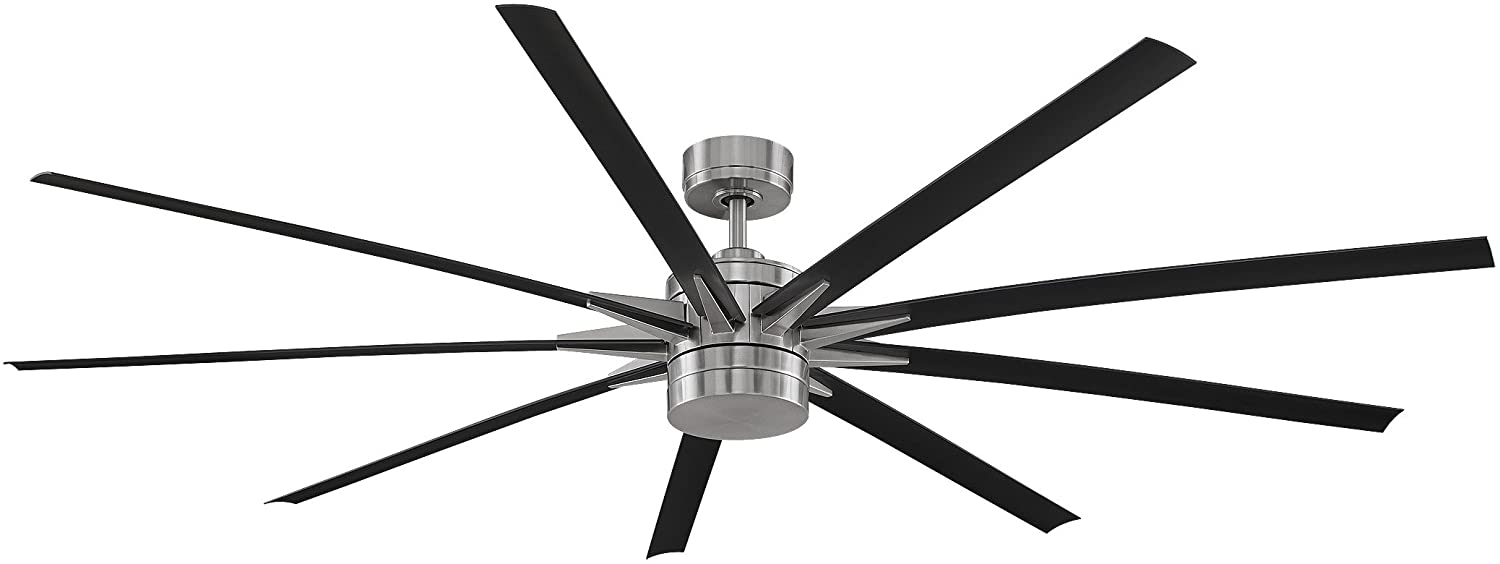

Fanimation Odyn FPD8148BN 84-inch Ceiling Fan

Fanimation Odyn FPD8148BN 84-inch Ceiling Fan
  • Fanimation Odyn FPD8148BN 84-inch Ceiling Fan, view 2

Tap a photo to enlarge it; use the arrow keys to move between photos.

Photos: Amazon product listing ↗ · refreshed Sep 16, 2026

Airflow (high)
10,104 CFM
Manufacturer source ↗
Blade diameter
84 in
Manufacturer source ↗

Fanimation’s exact FPD8148BN specification sheet documents an 84-inch brushed-nickel Odyn with six circulation speeds for dry or damp locations.

See price on AmazonIs 10,104 CFM enough for my room?Compare this fan

What works

  • Six published airflow settings span 4,453 to 10,104 CFM
  • The exact BN configuration is brushed nickel with black blades and a dry/damp location listing

What doesn't

  • The specification sheet and owner’s manual give different outlet-box support thresholds
  • The published location listing is dry/damp, not wet

Who it's for

Good fit

  • Large dry or damp rooms where an 84-inch fan and the published 6-inch downrod suit the ceiling

Look elsewhere if

  • Wet-location use or an installation that has not resolved the outlet-box support requirement

Confirmed configuration

Fanimation’s FPD8148BN specification sheet identifies the brushed-nickel version with black blades and an 84-inch blade sweep. It lists six speeds: 4,453, 5,645, 6,682, 7,923, 8,994, and 10,104 CFM from speed I through VI. The top listed setting is 61 RPM, 0.46 amp, and 32 watts. These are circulation figures for a ceiling fan, not fresh-air or exhaust capacity.

The same sheet lists 120 V, a 6-inch downrod, 32.14-pound net weight, and dry/damp location use. Damp is not a wet-location listing, so exposed rain or other wet installation needs a separately verified wet-rated model.

Installation check

The owner’s manual applies to the FPD8148** family and says to use an outlet box marked acceptable for fan support of 35 pounds or less. The specification sheet instead gives a 50-pound outlet-box support reference. Those documents conflict, so confirm the installation manual supplied with the exact unit or obtain manufacturer guidance before selecting the structural box and fasteners. Confirm ceiling height, slope allowance, and the downrod actually included with the carton before ordering.

Before you buy

Installation and buying checks

Use these questions to verify the exact configuration. Linked facts are cited; unlisted details stay questions.

  1. Mounting and support

    What mounting method and hardware does the exact unit require?

  2. Clearance and handling

    Do the listed physical details leave enough clearance for installation, adjustment, and service?

  3. Electrical match

    Does the documented electrical information match the planned supply? Confirm the installed unit’s nameplate and installation instructions before connecting it.

  4. Airflow at the job

    Is the listed airflow rated at an operating point that matches the job after placement, obstructions, and system resistance are considered?

  5. Location requirements

    Does the site require an environmental rating or guard? Neither is listed here.

Put 10,104 CFM in context

The Fanimation Odyn FPD8148BN 84-inch Ceiling Fan has a listed airflow of 10,104 cubic feet per minute. The table compares this rated volume with example room volumes. It does not measure fresh-air exchange, air speed at your body, or room coverage.

RoomSizeNominal room volumes / hourNominal pass interval
One-car garage22 × 12 × 9 ft · 2,376 ft³255×14 s
Two-car garage22 × 20 × 9 ft · 3,960 ft³153×24 s
Workshop40 × 30 × 12 ft · 14,400 ft³42×1.4 min
Warehouse bay100 × 50 × 16 ft · 80,000 ft³7.6×7.9 min

A circulation fan does not by itself replace indoor air. Exhaust airflow depends on a makeup-air path and system resistance. Use installed outdoor airflow for ventilation calculations.

Formula: airflow × 60 ÷ room volume. CDC explains the ventilation form of this equation; here the input is a catalog rating, so the result is a volume comparison.

Work it out for your own room →

Operating estimate

What could it cost to run?

This uses the listed 32 W power draw. The example below assumes 8 hours a day, 250 days a year, at $0.16 per kWh. Change the assumptions for your utility rate and schedule.

$10estimated electricity cost per year

This is an energy estimate, not a bill. Draw can vary by speed, supply voltage, controls, and the fan's actual load.

Listing details

What we know about this listing

Listing data was imported on September 14, 2026. Each specification can have a different source-check date; the evidence below is the most precise source information available here.

Sources for 10 listed specifications
  • Airflow (high): Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148** performance table — “Speed I 4,453 CFM; II 5,645; III 6,682; IV 7,923; V 8,994; VI 10,104 CFM; high speed 61 RPM, 0.46 A, 32 W.”
  • Airflow (low): Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148** performance table — “Speed I 4,453 CFM; II 5,645; III 6,682; IV 7,923; V 8,994; VI 10,104 CFM; high speed 61 RPM, 0.46 A, 32 W.”
  • Blade diameter: Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148BN model-number and specifications table — “FPD8148BN: Brushed Nickel / Black blades; 84 in blade sweep; 120 V; 6-speed control; dry/damp location; 6 in downrod; 32.14 lb net weight.”
  • Speeds: Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148BN model-number and specifications table — “FPD8148BN: Brushed Nickel / Black blades; 84 in blade sweep; 120 V; 6-speed control; dry/damp location; 6 in downrod; 32.14 lb net weight.”
  • Max speed: Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148** performance table — “Speed I 4,453 CFM; II 5,645; III 6,682; IV 7,923; V 8,994; VI 10,104 CFM; high speed 61 RPM, 0.46 A, 32 W.”
  • Power draw: Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148** performance table — “Speed I 4,453 CFM; II 5,645; III 6,682; IV 7,923; V 8,994; VI 10,104 CFM; high speed 61 RPM, 0.46 A, 32 W.”
  • Current: Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148** performance table — “Speed I 4,453 CFM; II 5,645; III 6,682; IV 7,923; V 8,994; VI 10,104 CFM; high speed 61 RPM, 0.46 A, 32 W.”
  • Voltage: Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148BN model-number and specifications table — “FPD8148BN: Brushed Nickel / Black blades; 84 in blade sweep; 120 V; 6-speed control; dry/damp location; 6 in downrod; 32.14 lb net weight.”
  • Weight: Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148BN model-number and specifications table — “FPD8148BN: Brushed Nickel / Black blades; 84 in blade sweep; 120 V; 6-speed control; dry/damp location; 6 in downrod; 32.14 lb net weight.”
  • Finish: Fanimation Odyn FPD8148 specification sheet · checked Sep 15, 2026 · Page 1, FPD8148BN model-number and specifications table — “FPD8148BN: Brushed Nickel / Black blades; 84 in blade sweep; 120 V; 6-speed control; dry/damp location; 6 in downrod; 32.14 lb net weight.”

Photos illustrate the listed model. Confirm the current variant, included hardware, and finish with the seller before purchase.
