DEWALT DXF-2490 24-Inch Drum Fan
Tap a photo to enlarge it; use the arrow keys to move between photos.
Photos: Amazon product listing ↗ · refreshed Sep 16, 2026

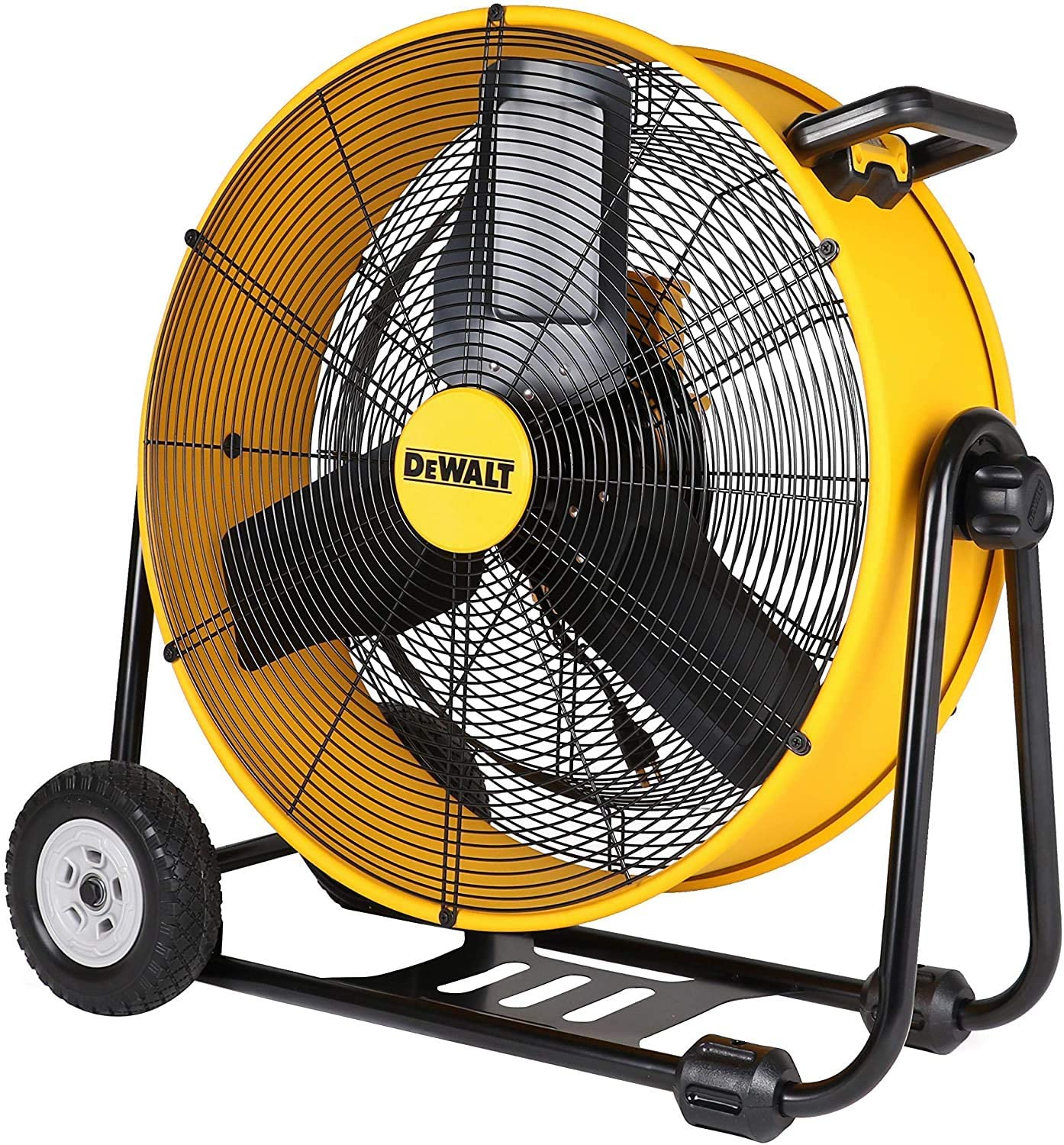

The DEWALT DXF-2490 is a wheeled 24-inch drum fan for dry indoor circulation, with stepless speed control and a 12-foot cord.
What works
- Stepless control documented in the model manual
- Wheels and a handle for repositioning
What doesn't
- The 6,500 CFM claim is a retailer maximum without a stated pressure point
Who it's for
Good fit
- Moving a circulation fan between dry indoor work areas
- Adjusting speed continuously rather than choosing fixed steps
Look elsewhere if
- Outdoor, damp, or wet locations
- A dedicated outdoor-air exhaust system
What makes the DXF-2490 worth considering?
This is a portable circulation option for a work area that changes during the day. Its wheeled frame and adjustable direction are more relevant to that decision than choosing solely by the largest CFM number. Compare where the fan will stand, how it will move between positions, and where its cord will run.
The DXF2490 instruction manual lists 120 volts, 120 watts, a 32.54-pound weight, and a 12-foot cord. It requires a level supporting surface and the fan's own controls. The operating-cost tool below uses the documented wattage as an input assumption; actual consumption can vary with operation.
Understand the airflow claim
Home Depot's exact-model listing advertises up to 6,500 CFM and a tilting head. The manual we checked does not establish an airflow test condition. We therefore retain that figure as a retailer-listed maximum and do not promote it as a manufacturer-verified ventilation calculation.
For an airflow comparison, use the linked floor-fan alternatives and compare control, footprint, and placement. For a defined fresh-air requirement, begin with the CFM calculator and the exhaust category.
Warranty
Alton's DEWALT fan warranty page includes DXF2490 under a five-year limited warranty. Check the terms for the unit and market being purchased. This page is a documentation-based assessment; we have not run a hands-on performance or noise test.
Verdict
Shortlist the DXF-2490 when movable indoor circulation matters most. Confirm the space for its frame and cord; choose an exhaust format if the job requires removing room air outdoors.
Questions people ask
- Can the DXF-2490 be used outdoors?
- Its manual specifies dry indoor use and excludes outdoor use. A retailer photo or application label should not override that restriction.
- Does 6,500 CFM mean this fan ventilates my room?
- No. That is a listed maximum circulation figure. Outdoor-air ventilation needs a defined exhaust or supply path and airflow appropriate to the installation.
Before you buy
Installation and buying checks
Use these questions to verify the exact configuration. Linked facts are cited; unlisted details stay questions.
Mounting and support
Does the planned location suit the listed floor mounting, with the required support, clearance, and service access?
- Mounting: floorProduct manual ↗
Clearance and handling
Do the listed physical details leave enough clearance for installation, adjustment, and service?
- Blade diameter: 24 inProduct manual ↗
- Weight: 32.54 lbProduct manual ↗
Electrical match
Does the documented electrical information match the planned supply? Confirm the installed unit’s nameplate and installation instructions before connecting it.
- Voltage: 120 VProduct manual ↗
- Power draw: 120 WProduct manual ↗
Airflow at the job
What airflow rating and test conditions apply to the exact configuration?
Location requirements
Do the documented location and guard details match the conditions and rules at the installation site? Check the manufacturer instructions for the exact configuration.
- Outdoor rated: NoProduct manual ↗
Listing details
What we know about this listing
Listing data was imported on September 14, 2026. Each specification can have a different source-check date; the evidence below is the most precise source information available here.
Sources for 9 listed specifications
- Voltage: DEWALT DXF2490 instruction manual · checked Sep 15, 2026 · Printed page 3 (PDF page 5), Product specifications; wattage is nameplate power, not a measured running average
- Power draw: DEWALT DXF2490 instruction manual · checked Sep 15, 2026 · Printed page 3 (PDF page 5), Product specifications; wattage is nameplate power, not a measured running average
- Weight: DEWALT DXF2490 instruction manual · checked Sep 15, 2026 · Printed page 3 (PDF page 5), Product specifications; wattage is nameplate power, not a measured running average
- Cord length: DEWALT DXF2490 instruction manual · checked Sep 15, 2026 · Printed page 3 (PDF page 5), Product specifications; wattage is nameplate power, not a measured running average
- Blade diameter: DEWALT DXF2490 instruction manual · checked Sep 15, 2026 · Cover identifies DXF2490 as a 24-inch drum fan
- Mounting: DEWALT DXF2490 instruction manual · checked Sep 15, 2026 · Printed page 2: smooth, non-combustible, level supporting surface
- Outdoor rated: DEWALT DXF2490 instruction manual · checked Sep 15, 2026 · Printed pages 2–3: indoor, dry use only
- Warranty: Alton DEWALT fan warranty · checked Sep 15, 2026 · DXF2490 listed under five-year limited DEWALT fan warranty
- Airflow (high): Home Depot DXF-2490 listing · checked Sep 15, 2026 · Retailer lists up to 6,500 CFM. No static-pressure rating is supplied; not a manufacturer-tested installed-flow claim.
Photos illustrate the listed model. Confirm the current variant, included hardware, and finish with the seller before purchase.
