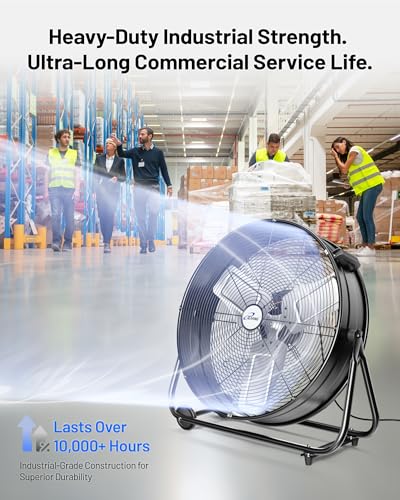

iLIVING ILG8MF24-77 24-Inch Drum Fan

What the two sources establish

The iLIVING ILG8MF24-77 product page identifies a 24-inch high-velocity drum fan and lists 7,700 CFM. Its linked owner manual names the same model and provides the operating data: 120V, 220W, 1.9A, 1,100 RPM, and a high/low control. Matching the page to the manual is useful when a marketplace title alone does not establish which electrical or control details apply.

This is a two-speed choice, not a three-speed model with missing data. The manual's switch positions are high and low, and it describes tilting the head to direct airflow. iLIVING publishes 7,700 CFM, but the documentation reviewed does not give a low-speed CFM figure. Do not manufacture one by dividing the high figure or assume that a 24-inch guard predicts throw distance. The listed number is useful for comparing documented models, while actual movement at a pallet, bench, or doorway depends on distance and obstructions.

Keep the use case indoors and directional

The owner manual says this fan should not be operated outside. Treat that as the controlling location constraint. Before use, review its current instructions for stable placement, clearance, power connection, and adjustment rather than extending the rating from the product's appearance.

A drum fan is suited to moving indoor air along a chosen path. Aim it at the occupied or equipment zone that needs circulation, then assess the result in that space. It does not itself provide local capture or prove that contaminated air is leaving the building. Those jobs require a separately designed approach.

Compare documented alternatives in industrial drum fans. The CFM calculator can examine an explicit room-flow assumption, but it cannot predict installed airflow from a free-air listing. This is research from current manufacturer materials, without hands-on noise, airflow, or durability testing.
