Air King · Wall-mount fan · Extra large airflow

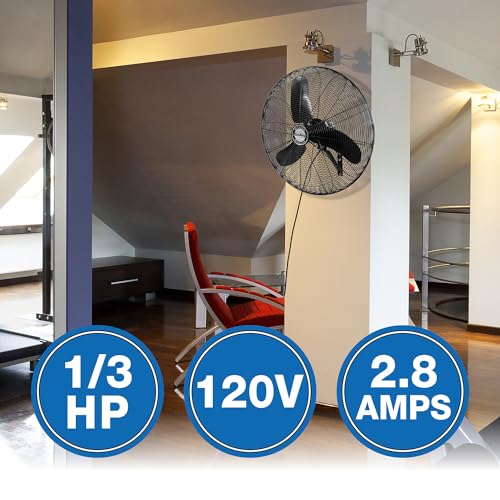

Air King 9070 30-Inch Wall-Mount Fan
- 8,780 CFMon high
- 30-inchhead
- 3speeds
- 1/3 HPmotor
Amazon shows the current price, delivery and seller. As an Amazon Associate we earn from qualifying purchases.
Specs cited from Manufacturer source ↗Photos: Amazon listing ↗ · refreshed Oct 31, 2026
The Air King 9070 is the strongest of Air King's 30-inch wall-mount fans: a 1/3 HP motor rated at 8,780 CFM on high, yet quieter on high than the 1/4 HP 9030 at 72 dBA.
What works
- 8,780 CFM on high from a 30-inch head
- 3 speeds, down to 5,570 CFM on low
- Tilting head to aim the airflow
- 1/3 HP motor on standard 120 V power
- 10-ft power cord
What doesn't
- No oscillation
- Loud: rated at 72 dB(A)
- 44.9 lb to support when mounting
- Draws more than the 9030: 308 W versus 255 W on high
Who it's for
Good fit
- Large garages, shops and warehouse bays that need maximum airflow from a wall
- Work zones where floor space is tight and noise still matters
- Buyers choosing between Air King's 30-inch wall fans who want the stronger motor
Look elsewhere if
- Anyone who needs oscillating, side-to-side coverage
- Outdoor or wet locations, since no outdoor rating is published
- Pulling hot air or fumes out of a building, which calls for an exhaust fan
A good fit for your job? Check the current price and delivery.
See price on AmazonWhy it stands out
The 9070 shares its 44.9 lb housing and 33.75 x 25.75 x 38.75-inch dimensions with the Air King 9030, but swaps in a 1/3 HP motor. The result, per Air King's table: 8,780 CFM on high, 7,480 on medium and 5,570 on low at up to 1,075 RPM. That is the most air in Air King's 30-inch range.
The surprise is the noise. Air King's spec sheet puts the 9070 at 72 dBA on high, 70 on medium and 64 on low. That is quieter at every setting than the 9030, which tops out at 75 dBA while moving less air.
The listing describes a totally enclosed ball-bearing motor, a powder-coated metal blade, ETL and OSHA compliance, testing to AMCA 230.99 and a 1-year limited warranty.
What to know before you buy
- Power: 120 V; 308 W and 2.8 A on high, 170 W and 1.7 A on low.
- Cord and controls: a 10-foot SJT cord and a rear pull-cord speed switch. Hang it where both reach.
- Mounting: 44.9 lb on a pivoting wall head. Anchor it into studs, masonry or steel.
- Coverage: no oscillation. It throws one strong, direct stream.
- Job: it circulates air. To push heat outdoors, look at industrial exhaust fans.
How it compares
- Air King 9030: the same housing with a 1/4 HP motor, rated at 7,400 CFM, 255 W and 75 dBA on high. It only makes sense if it is cheaper or you want the lower draw.
- Patterson H30A: also 30 inches, but with a 1 HP motor, a 12,000 CFM rating and a 12-foot cord. The heavier-duty pick for big warehouses.
- Schaefer 36DF: a 36-inch wall circulator the listing rates at 13,140 CFM from a 1/2 HP motor. It runs at a single speed and the listing puts it at 65 lbs.
Bottom line
The 9070 is the Air King wall fan to buy. It has more airflow, lower rated noise and the same mounting footprint as the 9030. Step up to the Patterson or Schaefer only when 8,780 CFM will not reach across the space.
Verdict
Buy the 9070 if you want the most documented airflow Air King offers in a 30-inch wall fan and have a 120 V outlet within 10 feet. Skip it if you need oscillation or an outdoor-rated fan.
Questions people ask
- How much air does the Air King 9070 move?
- Air King lists 8,780 CFM on high, 7,480 on medium and 5,570 on low.
- Is the 9070 louder than the 9030?
- No. Air King lists 72 dBA on high for the 9070 versus 75 dBA for the 9030, even though the 9070 moves more air.
- How much power does the 9070 use?
- 308 W and 2.8 A on high, 205 W on medium and 170 W on low, from a 1/3 HP, 120 V motor.
- Does the Air King 9070 oscillate?
- No. The head pivots for aiming, and Air King lists oscillation as 'No'.
Before you buy
Installation and buying checks
Use these questions to verify the exact configuration. Linked facts are cited; unlisted details stay questions.
Mounting and support
Does the planned location suit the listed wall mounting, with the required support, clearance, and service access?
- Mounting: wallManufacturer source ↗
Clearance and handling
Do the listed physical details leave enough clearance for installation, adjustment, and service?
- Dimensions (W × H × D): 33.75 × 38.75 × 25.75 inManufacturer source ↗
- Blade diameter: 30 inManufacturer source ↗
- Weight: 44.9 lbManufacturer source ↗
Electrical match
Does the documented electrical information match the planned supply? Confirm the installed unit’s nameplate and installation instructions before connecting it.
- Voltage: 120 VManufacturer source ↗
- Current: 2.8 AManufacturer source ↗
- Power draw: 308 WManufacturer source ↗
Airflow at the job
Is the listed airflow rated at an operating point that matches the job after placement, obstructions, and system resistance are considered?
- Airflow (high): 8,780 CFMManufacturer source ↗
Location requirements
Does the site require an environmental rating or guard? Neither is listed here.
Put 8,780 CFM in context
The Air King 9070 30-Inch Wall-Mount Fan has a listed airflow of 8,780 cubic feet per minute. The table compares this rated volume with example room volumes. It does not measure fresh-air exchange, air speed at your body, or room coverage.
| Room | Size | Nominal room volumes / hour | Nominal pass interval |
|---|---|---|---|
| One-car garage | 22 × 12 × 9 ft · 2,376 ft³ | 222× | 16 s |
| Two-car garage | 22 × 20 × 9 ft · 3,960 ft³ | 133× | 27 s |
| Workshop | 40 × 30 × 12 ft · 14,400 ft³ | 37× | 1.6 min |
| Warehouse bay | 100 × 50 × 16 ft · 80,000 ft³ | 6.6× | 9.1 min |
A circulation fan does not by itself replace indoor air. Exhaust airflow depends on a makeup-air path and system resistance. Use installed outdoor airflow for ventilation calculations.
Formula: airflow × 60 ÷ room volume. CDC explains the ventilation form of this equation; here the input is a catalog rating, so the result is a volume comparison.
Listing details
What we know about this listing
Listing data was imported on October 31, 2026. Each specification can have a different source-check date; the evidence below is the most precise source information available here.
Sources for 17 listed specifications
- Airflow (high): Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Airflow (medium): Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Airflow (low): Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Blade diameter: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Speeds: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 model-group Details section — “3-speed, 1/3 HP, 120V motor; rear pull-cord control; 10-foot cord; pivoting wall head.”
- Max speed: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Motor: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 model-group Details section — “3-speed, 1/3 HP, 120V motor; rear pull-cord control; 10-foot cord; pivoting wall head.”
- Power draw: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Current: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Voltage: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 model-group Details section — “3-speed, 1/3 HP, 120V motor; rear pull-cord control; 10-foot cord; pivoting wall head.”
- Noise: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Noise: Air King 9070 exact-model specification sheet · checked Sep 15, 2026 · Page 1, exact-model performance table: DB A high/med/low columns. — “MODEL CFM RPM AMPS WATTS DB A — 9070: DB A high 72”
- Weight: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Dimensions (W × H × D): Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table — “30-inch blade; CFM 8780 / 7480 / 5570; RPM 1075 / 925 / 800; amps 2.8 / 2.0 / 1.7; watts 308 / 205 / 170; dB 72 / 70 / 64; weight 44.9 lb; dimensions 33.75 x 25.75 x 38.75 in.”
- Cord length: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 entry in product details — “3-speed, 1/3 HP, 120V motor; rear pull-cord control; 10-foot cord; pivoting wall head.”
- Oscillates: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 row in specifications table, Oscillation — “Oscillation: No”
- Tilting head: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 entry in product details — “3-speed, 1/3 HP, 120V motor; rear pull-cord control; 10-foot cord; pivoting wall head.”
- Mounting: Air King 9070 manufacturer product page · checked Sep 15, 2026 · 9070 entry in product details — “3-speed, 1/3 HP, 120V motor; rear pull-cord control; 10-foot cord; pivoting wall head.”
Photos illustrate the listed model. Confirm the current variant, included hardware, and finish with the seller before purchase.
