AC Infinity · Exhaust fan · Medium airflow

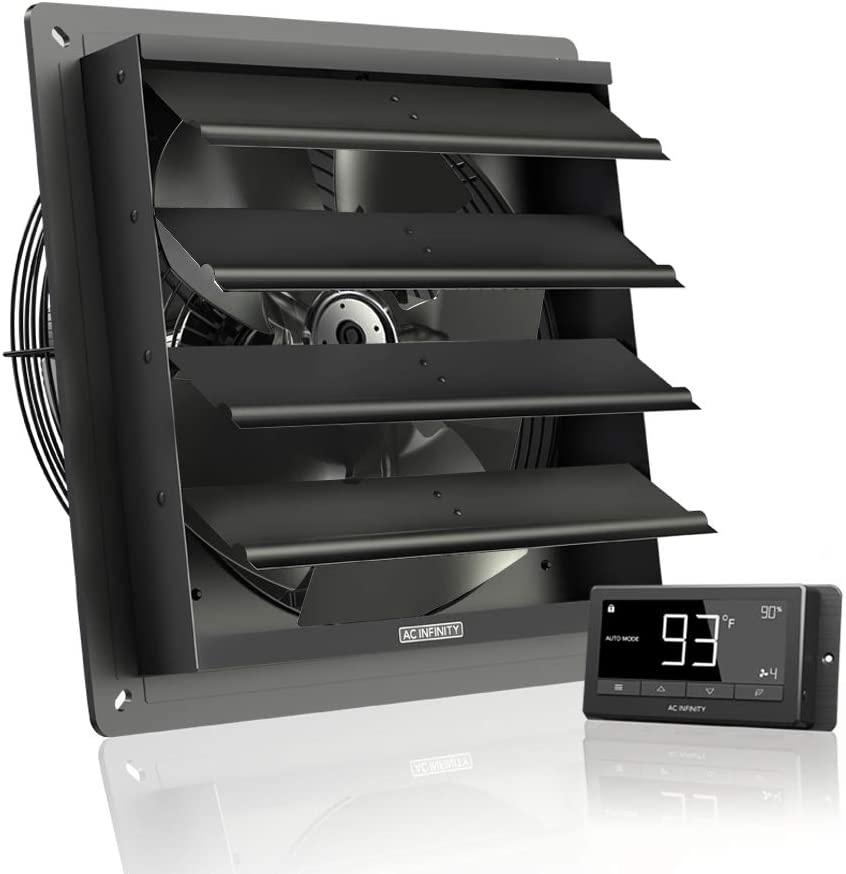

AC Infinity AIRLIFT T14 Shutter Exhaust Fan 14"

AC Infinity AIRLIFT T14 Shutter Exhaust Fan 14"
  • AC Infinity AIRLIFT T14 Shutter Exhaust Fan 14", view 2
  • AC Infinity AIRLIFT T14 Shutter Exhaust Fan 14", view 3
  • AC Infinity AIRLIFT T14 Shutter Exhaust Fan 14", view 4
  • AC Infinity AIRLIFT T14 Shutter Exhaust Fan 14", view 5
  • AC Infinity AIRLIFT T14 Shutter Exhaust Fan 14", view 6

Tap a photo to enlarge it; use the arrow keys to move between photos.

Photos: Amazon product listing ↗ · refreshed Sep 16, 2026

Airflow (high)
1,513 CFM
Manufacturer source ↗
Blade diameter
14 in
Manufacturer source ↗

A 14-inch smart shutter exhaust fan rated at 1,513 CFM with temperature and humidity control.

See price on AmazonIs 1,513 CFM enough for my room?Compare this fan

What works

  • Manufacturer lists 1,513 CFM
  • Temperature and humidity controller
  • 70-watt EC motor

What doesn't

  • Manufacturer lists 68 dBA

Who it's for

Good fit

  • Ventilation needing temperature and humidity automation
  • Installations sized to the manufacturer’s mounting dimensions

Look elsewhere if

  • High-volume 24-inch or 30-inch exhaust openings

This research-based pick suits a manufacturer-specified 14.68-inch square mounting opening where automated temperature and humidity control matters. AC Infinity lists 1,513 CFM, a 70-watt EC motor, steel shutters, aluminum blades, and a controller with temperature, humidity, and Wi-Fi features; its published sound figure is 68 dBA. The specified mounting opening is larger than the nominal 14-inch fan size. See the AIRLIFT T14 product page for the full control and electrical details.

Before you buy

Installation and buying checks

Use these questions to verify the exact configuration. Linked facts are cited; unlisted details stay questions.

  1. Mounting and support

    What mounting method and hardware does the exact unit require?

  2. Clearance and handling

    Do the listed physical details leave enough clearance for installation, adjustment, and service?

  3. Electrical match

    Does the documented electrical information match the planned supply? Confirm the installed unit’s nameplate and installation instructions before connecting it.

  4. Airflow at the job

    Is the listed airflow rated at an operating point that matches the job after placement, obstructions, and system resistance are considered?

  5. Location requirements

    Does the site require an environmental rating or guard? Neither is listed here.

Put 1,513 CFM in context

The AC Infinity AIRLIFT T14 Shutter Exhaust Fan 14" has a listed airflow of 1,513 cubic feet per minute. The table compares this rated volume with example room volumes. It does not measure fresh-air exchange, air speed at your body, or room coverage.

RoomSizeNominal room volumes / hourNominal pass interval
One-car garage22 × 12 × 9 ft · 2,376 ft³38×1.6 min
Two-car garage22 × 20 × 9 ft · 3,960 ft³23×2.6 min
Workshop40 × 30 × 12 ft · 14,400 ft³6.3×9.5 min
Warehouse bay100 × 50 × 16 ft · 80,000 ft³1.1×53 min

A circulation fan does not by itself replace indoor air. Exhaust airflow depends on a makeup-air path and system resistance. Use installed outdoor airflow for ventilation calculations.

Formula: airflow × 60 ÷ room volume. CDC explains the ventilation form of this equation; here the input is a catalog rating, so the result is a volume comparison.

Work it out for your own room →

Operating estimate

What could it cost to run?

This uses the listed 70 W power draw. The example below assumes 8 hours a day, 250 days a year, at $0.16 per kWh. Change the assumptions for your utility rate and schedule.

$22estimated electricity cost per year

This is an energy estimate, not a bill. Draw can vary by speed, supply voltage, controls, and the fan's actual load.

Listing details

What we know about this listing

Listing data was imported on September 14, 2026. Each specification can have a different source-check date; the evidence below is the most precise source information available here.

Sources for 5 listed specifications
  • Airflow (high): AC Infinity AIRLIFT T14 AC-ALT14 · checked Sep 14, 2026 · Model-specific specification table; high-speed value for watts and noise where speeds are listed
  • Power draw: AC Infinity AIRLIFT T14 AC-ALT14 · checked Sep 14, 2026 · Model-specific specification table; high-speed value for watts and noise where speeds are listed
  • Noise: AC Infinity AIRLIFT T14 AC-ALT14 · checked Sep 14, 2026 · Model-specific specification table; high-speed value for watts and noise where speeds are listed
  • Blade diameter: AC Infinity AIRLIFT T14 AC-ALT14 · checked Sep 14, 2026 · Model-specific specification table; high-speed value for watts and noise where speeds are listed
  • Dimensions (W × H × D): AC Infinity AIRLIFT T14 AC-ALT14 · checked Sep 14, 2026 · Model-specific specification table; high-speed value for watts and noise where speeds are listed

Photos illustrate the listed model. Confirm the current variant, included hardware, and finish with the seller before purchase.
