iLiving · Drum fan · Large airflow

iLiving ILG8M20-50DC 20-Inch Drum Fan

iLiving ILG8M20-50DC 20-Inch Drum Fan
  • iLiving ILG8M20-50DC 20-Inch Drum Fan, view 2
  • iLiving ILG8M20-50DC 20-Inch Drum Fan, view 3

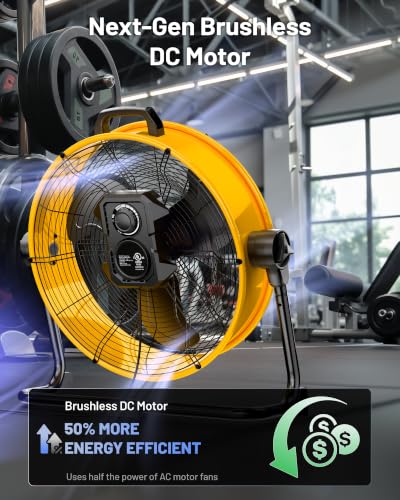

  • iLiving ILG8M20-50DC 20-Inch Drum Fan, view 4
  • iLiving ILG8M20-50DC 20-Inch Drum Fan, view 5
  • iLiving ILG8M20-50DC 20-Inch Drum Fan, view 6

Tap a photo to enlarge it; use the arrow keys to move between photos.

Photos: Amazon product listing ↗ · refreshed Sep 16, 2026

Airflow (high)
5,703 CFM
Product manual ↗
Blade diameter
20 in
Manufacturer source ↗

The iLIVING ILG8M20-50DC is a 20-inch drum fan with stepless control and 95 W listed power; its current page and owner manual conflict on covered-outdoor use.

See price on AmazonIs 5,703 CFM enough for my room?Compare this fan

What works

  • Manual lists 95 watts, 1.2 amps, and 5,703 CFM
  • Tilt-adjustable head

What doesn't

  • The official page and manual conflict on covered-outdoor use
  • The manual provides one maximum CFM, not a multi-speed airflow curve

Who it's for

Good fit

  • Buyers who can resolve the manufacturer location-use conflict before installation
  • Circulation tasks where stepless control and a compact drum format matter

Look elsewhere if

  • Sites needing an unambiguous manufacturer outdoor designation
  • A dedicated outdoor-air exhaust system

Read both exact-model sources before selecting a location

The ILG8M20-50DC owner manual lists a 120-volt fan with 95 W power, 1.2A current, 1,130 RPM, stepless speed control, 5,703 CFM, and a 68 dB listed noise value. It also describes adjustment knobs for tilting the head. Those are model documentation values, useful for comparing this fan with another documented record at its listed setting; they do not predict the airspeed at a particular workstation.

Its current product page says “Indoor & Covered Outdoor Use — Not built for outdoor without a cover.” The manual says the fan is designed for indoor household use only and says not to use it outdoors. Neither source explains the conflict. The catalog therefore omits an outdoorRated value and does not present the fan as approved for either exposed or covered outdoor installation.

Compare the control and placement

The product page describes a six-foot cable, while the manual documents the operating electrical data and the tilt adjustment. Measure the fan's parking location and cable route before treating it as portable: a circulation fan needs an unobstructed intake and discharge path to be useful. The documentation provides only the maximum CFM, so it cannot support a calculated lower-speed ventilation or noise claim.

Compare this compact drum format with floor fans and drum fans. If the project requires a defined outdoor-air flow, begin with the CFM calculator and then select a fan around the actual intake, exhaust, and pressure conditions. This is a documentation-based assessment; we have not run a hands-on performance or noise test.

Verdict

Consider this model only after resolving the manufacturer location-use conflict for the planned site. Its documented 95 W power and maximum CFM help compare records, but neither establishes installed ventilation.

See price on Amazon

Questions people ask

Can the ILG8M20-50DC be used outdoors?
The owner manual says indoor household use only and says not to use it outdoors, while the current product page says covered outdoor use. This record does not publish an outdoor rating until iLIVING reconciles those statements.
Does stepless control mean it has several published CFM ratings?
No. The manual lists stepless speed and one 5,703-CFM value; it does not publish a full airflow curve by knob position.

Before you buy

Installation and buying checks

Use these questions to verify the exact configuration. Linked facts are cited; unlisted details stay questions.

  1. Mounting and support

    What mounting method and hardware does the exact unit require?

  2. Clearance and handling

    Do the listed physical details leave enough clearance for installation, adjustment, and service?

  3. Electrical match

    Does the documented electrical information match the planned supply? Confirm the installed unit’s nameplate and installation instructions before connecting it.

  4. Airflow at the job

    Is the listed airflow rated at an operating point that matches the job after placement, obstructions, and system resistance are considered?

  5. Location requirements

    Does the site require an environmental rating or guard? Neither is listed here.

Put 5,703 CFM in context

The iLiving ILG8M20-50DC 20-Inch Drum Fan has a listed airflow of 5,703 cubic feet per minute. The table compares this rated volume with example room volumes. It does not measure fresh-air exchange, air speed at your body, or room coverage.

RoomSizeNominal room volumes / hourNominal pass interval
One-car garage22 × 12 × 9 ft · 2,376 ft³144×25 s
Two-car garage22 × 20 × 9 ft · 3,960 ft³86×42 s
Workshop40 × 30 × 12 ft · 14,400 ft³24×2.5 min
Warehouse bay100 × 50 × 16 ft · 80,000 ft³4.3×14 min

A circulation fan does not by itself replace indoor air. Exhaust airflow depends on a makeup-air path and system resistance. Use installed outdoor airflow for ventilation calculations.

Formula: airflow × 60 ÷ room volume. CDC explains the ventilation form of this equation; here the input is a catalog rating, so the result is a volume comparison.

Work it out for your own room →

Operating estimate

What could it cost to run?

This uses the listed 95 W power draw. The example below assumes 8 hours a day, 250 days a year, at $0.16 per kWh. Change the assumptions for your utility rate and schedule.

$30estimated electricity cost per year

This is an energy estimate, not a bill. Draw can vary by speed, supply voltage, controls, and the fan's actual load.

Listing details

What we know about this listing

Listing data was imported on September 15, 2026. Each specification can have a different source-check date; the evidence below is the most precise source information available here.

Sources for 9 listed specifications

Photos illustrate the listed model. Confirm the current variant, included hardware, and finish with the seller before purchase.
